Saint-Gobain Versilon F-5500-A
Versilon F-5500-A

PRODUCT INTRODUCTION

•Saint-Gobain Versilon F-5500-A tubing provides excellent resistance to corrosive chemicals, oils, fuels, solvents, and most mineral acids, also resistance to many aliphatic and aromatic carbohydrates.
• Resists ozone, sunlight and weathering.
•Opaque black color helps protect light-sensitive fluids.
•Provides continuous service at temperatures up to 400°F (204°C).
•Highly flexible and resilient, making it the ideal choice in peristaltic pumping of extremely corrosive materials.

TECHNICAL PARAMETER

Brand
Saint-GobainVersilonF-5500-A
Hardness (Shore A)
60
Tensile Strength psi(Mpa)
1400(9.3)
Elongation %
300
Tear Strength Ib-f/in(KN/m)
100(17.5)
Proportion
1.9
Water Absorption,%24hrs.@23℃
0.23
Temperature Resistance
-51℃—204℃
Constant compression set rate,%22hrs.@70℃
37

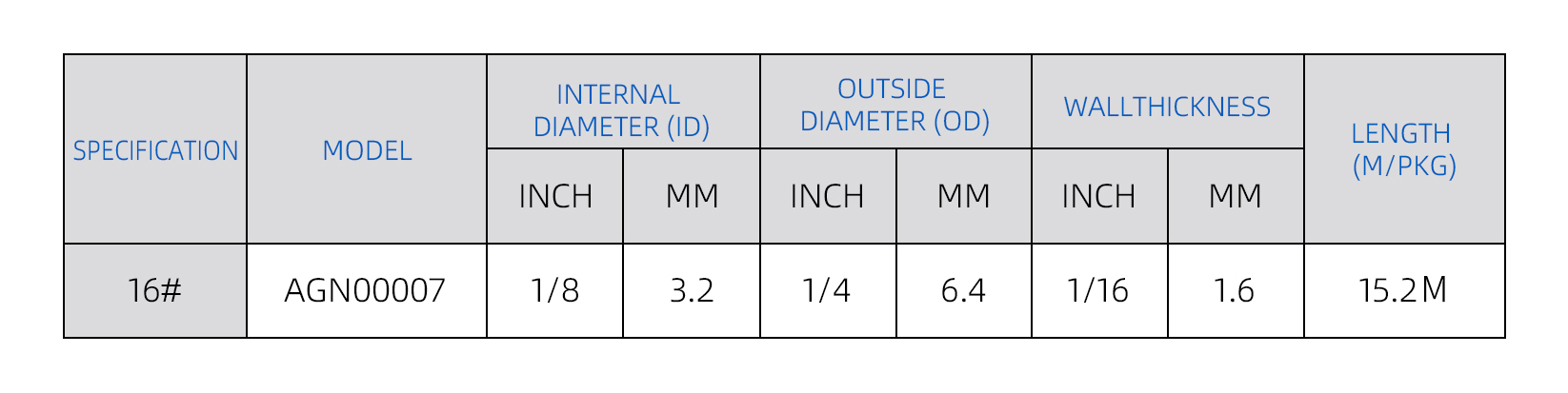

SPECIFICATION PARAMETERS

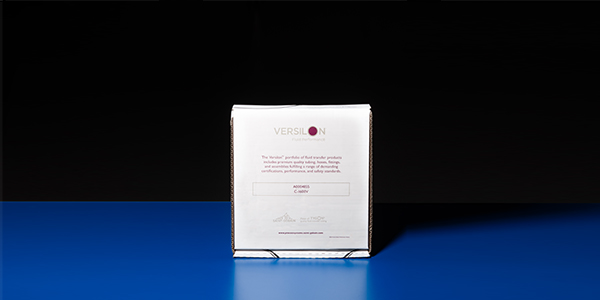

PRODUCT PACKAGING

Individually packaged in original cartons

DOWNLOAD

Product Inspection Report
Chemical Compatibility Table
Chemical Compatibility Table(29.5KB) DOWNLOAD
