Saint-Gobain Peristaltic Pump Tubing
PharMed BPT

Certification:REACH RoHS USP CLASS VI FDA NSF 51
Meets ISO 10993 biocompatibility standards

PRODUCT INTRODUCTION

PharMed® peristaltic pump tubing can be used in bioingredients and cell research.
Meets ISO 10993 biocompatibility standards
Low permeability, suitable for cell culture, fermentation, synthesis, separation and other processes, and can be repeatedly autoclaved.
Meets USP CLASS VI,FDA,NSF51 standards
When in peristaltic pump using, its lifespan is 30 times more durable than ordinary silicone tubing.

TECHNICAL PARAMETER

Brand
Saint-Gobain PharMed® BPT Tubing
Hardness (Shore A)
64
Tensile Strength psi(Mpa)
1000(6.9)
Elongation %
375
Tear Strength Ib-f/in(KN/m)
120(21.0)
Proportion
0.98
Water Absorption,%24hrs.@23℃
0.3
Temperature Resistance
-59℃-135℃
Constant compression set rate,%22hrs.@70℃
27
Note: The silicone tubing is not resistant to acids, alkali and organic solvents. So it is not recommended for transferring such substances. For the medium used, please refer to the “ Chemical Compatibility Table”.

DISINFECTION METHOD

High temperature and high pressure sterilization——30 min at 121℃
Gas——Ethylene oxide
Gamma rays ——50KGY

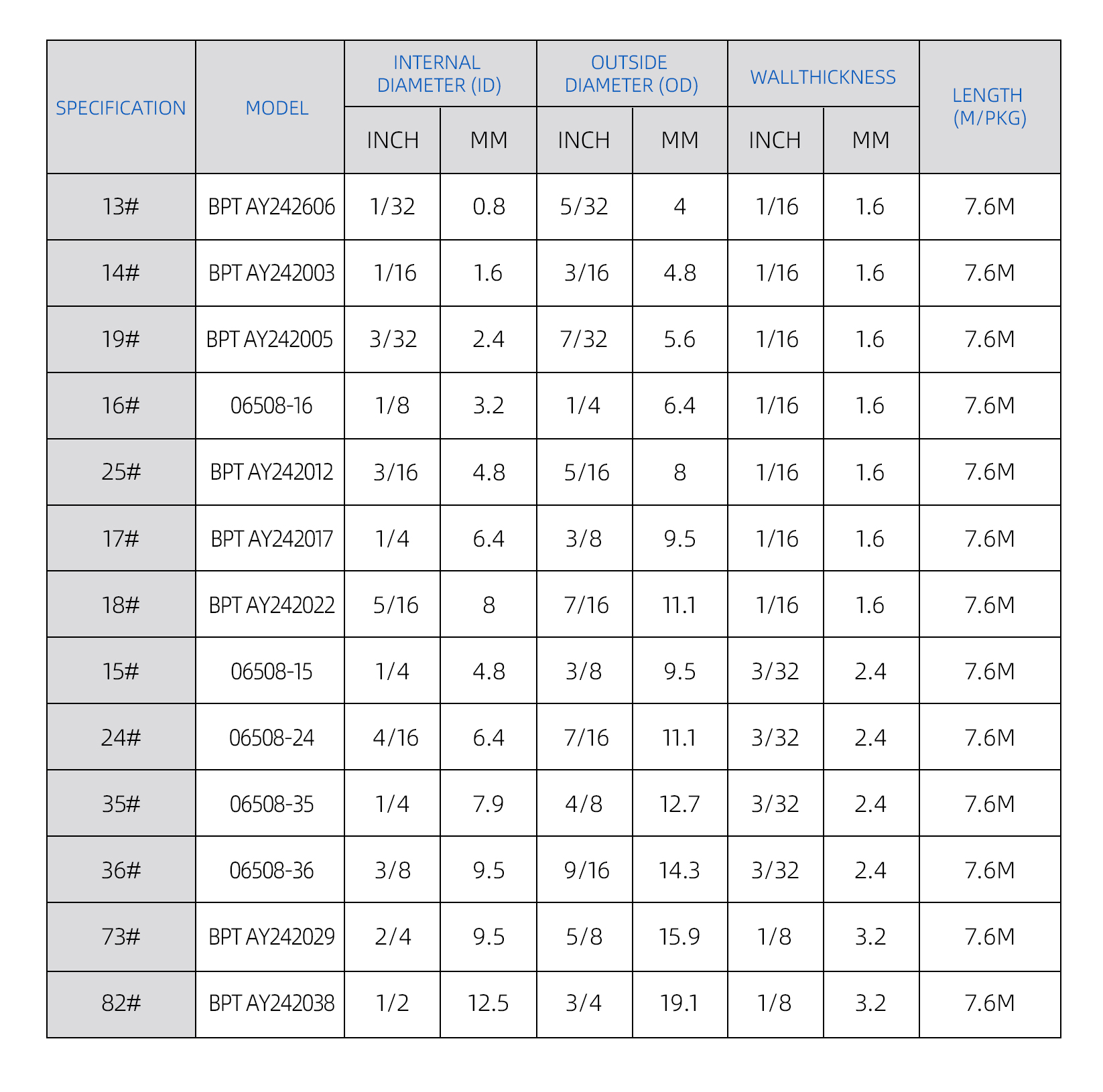

SPECIFICATION PARAMETERS

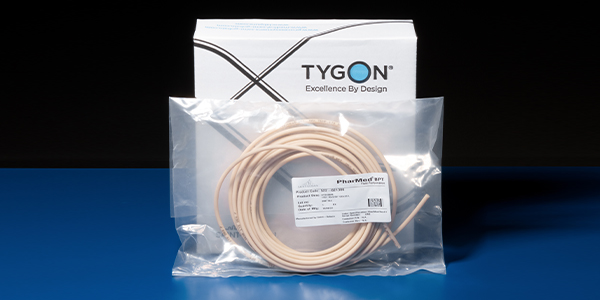

PRODUCT PACKAGING

Individually packaged in original cartons in compliance with GMP regulations
Use packaging bags that do not contain phthalates

DOWNLOAD

Product Inspection Report
Chemical Compatibility Table
Chemical Compatibility Table(29.5KB) DOWNLOAD
